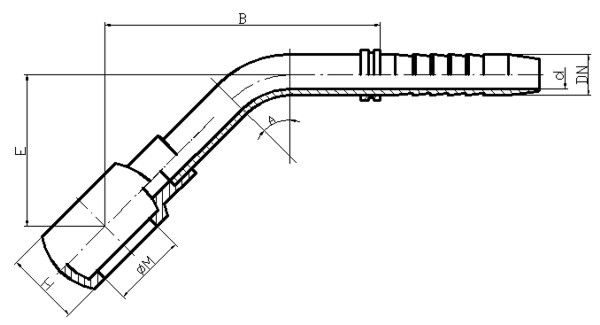

| Średnica węża DN |
Średnica wew. oczka M |
H [mm] |
d [mm] |
System oznaczeń |
Symbol |
| 6 | M10x1,5 | 12.0 | 4.0 | 3 | P04 06 10 12 |
| 6 | M12x1,5 | 12.0 | 4.0 | 1 | P04 06 12 12 |
| 6 | M14x1,5 | 12.0 | 4.0 | 2 | P04 06 14 12 |
| 8 | M12x1,5 | 14.0 | 5.5 | 3 | P04 08 12 14 |
| 8 | M14x1,5 | 14.0 | 5.5 | 1 | P04 08 14 14 |
| 8 | M16x1,5 | 15.0 | 5.5 | 2 | P04 08 16 15 |
| 8 | M18x1,5 | 15.0 | 5.5 | 4 | P04 08 18 15 |
| 10 | M14x1,5 | 15.0 | 7.0 | 3 | P04 10 14 15 |
| 10 | M16x1,5 | 15.0 | 7.0 | 1 | P04 10 16 15 |
| 10 | M18x1,5 | 15.0 | 7.0 | 2 | P04 10 18 15 |
| 13 | M18x1,5 | 18.0 | 10.0 | 1 | P04 13 18 18 |
| 13 | M20x1,5 | 21.0 | 10.0 | 3 | P04 13 20 21 |
| 13 | M22x1,5 | 19.0 | 10.0 | 2 | P04 13 22 19 |
| 16 | M22x1,5 | 22.0 | 12.6 | 1 | P04 16 22 22 |
| 16 | M26x1,5 | 22.0 | 12.6 | 2 | P04 16 26 22 |
| 16 | M27x1,5 | 22.0 | 12.6 | 3 | P04 16 27 22 |
| 20 | M26x1,5 | 25.5 | 15.0 | 1 | P04 20 26 25.5 |
| 20 | M27x2 | 25.5 | 15.0 | 2 | P04 20 27 25.5 |
| 25 | M30x1,5 | 31.5 | 21.0 | 1 | P04 25 30 31.5 |
