Zakucia calowe:

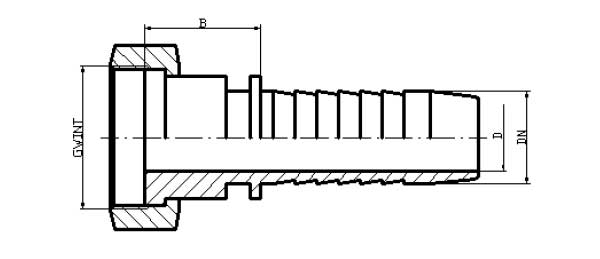

ORFS (K41)

ORFS (K41)


Zakucia calowe »

Szczegółowy opis zakuć »

Średnica
węża DN
Gwint D
[mm]
B
[mm]
System oznaczeń Symbol
6 9/16''-18 4.0 27.5 1 K41 06 9/16''-18
6 11/16''-16 7.0 30.0 2 K41 06 11/16''-16
8 11/16''-16 7.0 30.5 1 K41 08 11/16''-16
10 11/16''-16 7.0 31.1 1 K41 10 11/16''-16
10 13/16''-16 9.3 35.6 2 K41 10 13/16''-16
13 13/16''-16 9.3 35.9 1 K41 13 13/16''-16
13 1''-14 11.5 38.4 2 K41 13 1''-14
13 1 3/16''-12 13.9 41.9 3 K41 13 1 3/16''-12
16 1''-14 11.5 38.7 1 K41 16 1''-14
20 1''-14 11.5 41.0 1 K41 20 1''-14
20 1 3/16''-12 13.9 43.5 2 K41 20 1 3/16''-12
20 1 7/16''-12 19.8 45.5 3 K41 20 1 7/16''-12
25 1 7/16''-12 19.8 46.3 1 K41 25 1 7/16''-12
32 1 11/16''-12 26.0 49.0 1 K41 25 1 11/16''-12
40 2''-12 32.0 54.0 1 K41 25 2''-12
