Zakucia calowe:

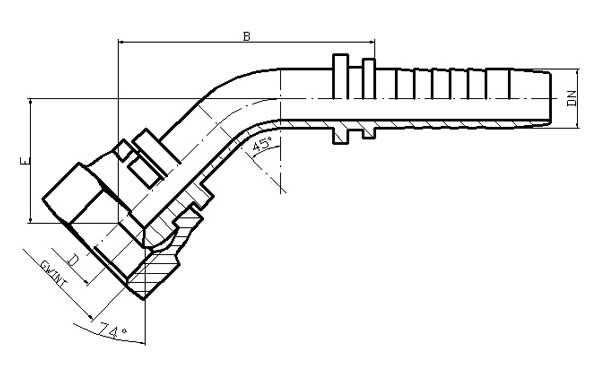

DKJ 45 (C95)

DKJ 45 (C95)


Zakucia calowe »

Szczegółowy opis zakuć »

Średnica
węża DN
   Gwint    D
[mm]
E
[mm]
B
[mm]
System oznaczeń     Symbol
6 7/16''-20 UNF-2B 4.0 27 26 1 C95 06 7/16''
6 1/2''-20 UNF-2B 4.0 31 26 2 C95 06 1/2''
6 9/16''-18 UNF-2B 4.0 36 26 3 C95 06 9/16''
8 1/2''-20 UNF-2B 4.0 35 30 1 C95 08 1/2''
8 9/16''-18 UNF-2B 4.0 38 30 2 C95 08 9/16''
10 1/2''-20 UNF-2B 7.0 40 33 3 C95 10 1/2''
10 9/16''-18 UNF-2B 7.0 40 33 1 C95 10 9/16''
10 3/4''-16 UNF-2B 7.0 42 35 2 C95 10 3/4''
13 3/4''-16 UNF-2B 10.0 49 42 1 C95 13 3/4''
13 7/8''-14 UNF-2B 10.0 51 42 2 C95 13 7/8''
16 7/8''-14 UNF-2B 13.0 55 52 1 C95 16 7/8''
16 1 1/16''-12 UNF-2A 13.0 58 52 2 C95 16 1 1/16''
20 1 1/16''-12 UNF-2B 15.0 62 60 1 C95 20 1 1/16''
20 1 5/16''-12 UNF-2B 15.0 66 60 2 C95 20 1 5/16''
25 1 5/16''-12 UNF-2B 21.0 76 65 1 C95 25 1 5/16''
32 1 5/8''-12 UNF-2B 27.0 87 94 1 C95 32 1 5/8''
