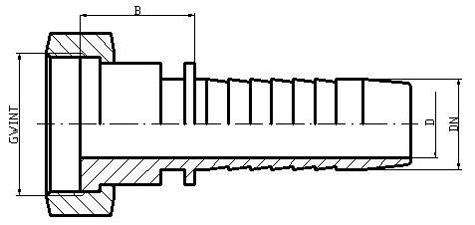

| Średnica węża DN |
Gwint | D [mm] |
B [mm] |
System oznaczeń |
Symbol |
| 6 | G 1/4'' | 4.0 | 14.0 | 1 | C51 06 1/4'' |
| 8 | G 1/4'' | 4.0 | 27.0 | 1 | C51 08 1/4'' |
| 8 | G 3/8'' | 5.5 | 16 | 2 | C51 08 3/8'' |
| 10 | G 3/8'' | 7.0 | 17 | 1 | C51 10 3/8'' |
| 10 | G 1/2'' | 7.0 | 19 | 2 | C51 10 1/2'' |
| 13 | G 1/2'' | 10.0 | 20 | 1 | C51 13 1/2'' |
| 13 | G 5/8'' | 10.0 | 21 | 2 | C51 13 5/8'' |
| 16 | G 5/8'' | 13.0 | 21 | 1 | C51 16 5/8'' |
| 16 | G 3/4'' | 13.0 | 23 | 2 | C51 16 3/4'' |
| 20 | G 3/4'' | 15.0 | 24 | 1 | C51 20 3/4'' |
| 20 | G 1'' | 15.0 | 26 | 2 | C51 20 1'' |
| 25 | G 1'' | 21.0 | 26 | 1 | C51 25 1'' |
| 25 | G 1 1/4'' | 21.0 | 26 | 2 | C51 25 1 1/4'' |
| 32 | G 1 1/4'' | 27.0 | 27.0 | 1 | C51 32 1 1/4'' |
