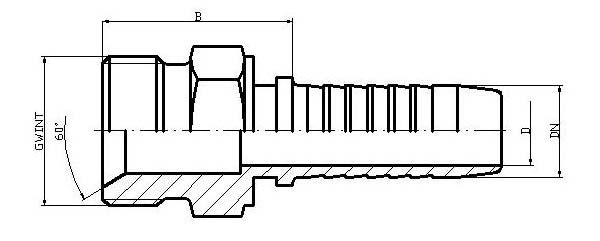

Średnica
węża DN
Gwint D
[mm]
B
[mm]
S
[mm]
System
oznaczeń
Symbol
6 G 1/8'' 4.0 26.0 13 1 C21 06 1/8''
6 G 1/4'' 4.0 23.0 19 2 C21 06 1/4''
6 G 3/8'' 4.0 28.0 22 - C21 06 3/8''
8 G 1/4'' 5.5 23.0 19 - C21 08 1/4''
8 G 3/8'' 5.5 28.0 22 1 C21 08 3/8''
8 G 1/2'' 5.5 28.0 27 - C21 08 1/2''
10 G 3/8'' 7.0 27.0 22 1 C21 10 3/8''
10 G 1/2'' 7.0 28.0 27 2 C21 10 1/2''
13 G 1/2'' 10.0 33.0 27 1 C21 13 1/2''
13 G 3/4'' 10.0 38 32 - C21 13 3/4''
16 G 1/2'' 12.5 28.0 27 - C21 16 1/2''
16 G 5/8'' 12.5 34.0 30 1 C21 16 5/8''
16 G 3/4'' 12.5 33.0 32 2 C21 16 3/4''
20 G 3/4'' 15.0 38.0 32 1 C21 20 3/4''
20 G 1'' 15.0 44.0 41 - C21 20 1''
25 G 1'' 21.0 44.0 41 1 C21 25 1''
25 G 1 1/4'' 21.0 49.0 50 - C21 25 1 1/4''
32 G 1 1/4'' 27.0 49.0 50 1 C21 32 1 1/4''
32 G 1 1/2'' 33.0 54.0 55 - C21 32 1 1/2''
40 G 1 1/2'' 33.0 54.0 55 1 C21 40 1 1/2''
50 G 2'' 44.5 62.0 70 1 C21 50 2''
