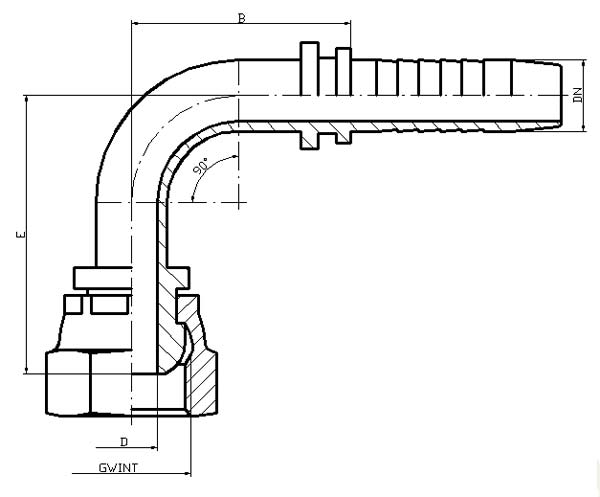

| Średnica węża DN |
Gwint | D [mm] |
E [mm] |
B [mm] |
System oznaczeń |
Symbol |
| 6 | G 1/4'' | 4.0 | 30 | 30 | 1 | C12 06 1/4'' |
| 6 | G 3/8'' | 4.0 | 30 | 30 | 2 | C12 06 3/8'' |
| 8 | G 3/8'' | 5.5 | 32 | 35 | 1 | C12 08 3/8'' |
| 10 | G 3/8'' | 7.0 | 42 | 35 | 1 | C12 10 3/8'' |
| 10 | G 1/2'' | 7.0 | 34 | 35 | 2 | C12 10 1/2'' |
| 13 | G 1/2'' | 10.0 | 42 | 43 | 1 | C12 13 1/2'' |
| 13 | G 5/8'' | 10.0 | 42 | 43 | 2 | C12 13 5/8'' |
| 16 | G 5/8'' | 13.0 | 60 | 55 | 1 | C12 16 5/8'' |
| 16 | G 3/4'' | 13.0 | 52 | 55 | 2 | C12 16 3/4'' |
| 20 | G 3/4'' | 15.0 | 70 | 62 | 1 | C12 20 3/4'' |
| 20 | G 1'' | 15.0 | 62 | 62 | 2 | C12 20 1'' |
| 25 | G 1'' | 21.0 | 78 | 75 | 1 | C12 25 1'' |
| 25 | G 1 1/4'' | 21.0 | 72 | 75 | 2 | C12 25 1 1/4'' |
| 32 | G 1 1/4'' | 27.0 | 92 | 94 | 1 | C12 32 1 1/4'' |
| 32 | G 1 1/2'' | 27.0 | 84 | 94 | 2 | C12 32 1 1/2'' |
| 40 | G 1 1/2'' | 33.0 | 101 | 105 | 1 | C12 40 1 1/2'' |
| 40 | G 2'' | 33.0 | 102 | 105 | 2 | C12 40 2'' |
| 50 | G 1 1/2'' | 33.0 | 120 | 108 | 1 | C12 50 1 1/2'' |
