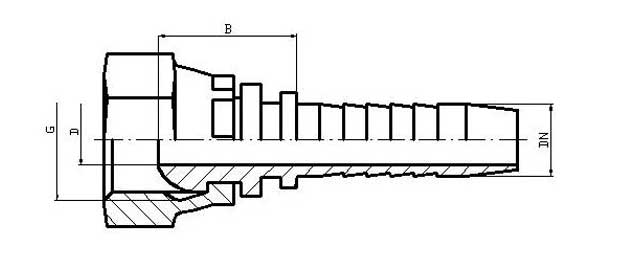

| Średnica węża DN |
Gwint | D [mm] |
B [mm] |
System oznaczeń |
Symbol |
| 6 | G 1/8'' | 4.0 | 16.0 | - | C11 06 1/8'' |
| 6 | G 1/4'' | 4.0 | 16.0 | 1 | C11 06 1/4'' |
| 6 | G 3/8'' | 4.0 | 20.0 | 2 | C11 06 3/8'' |
| 8 | G 1/4'' | 5.5 | 16.0 | - | C11 08 1/4'' |
| 8 | G 3/8'' | 5.5 | 19.0 | 1 | C11 08 3/8'' |
| 10 | G 3/8'' | 7.0 | 20.0 | 1 | C11 10 3/8'' |
| 10 | G 1/2'' | 7.0 | 22.0 | 2 | C11 10 1/2'' |
| 13 | G 1/2'' | 10.0 | 23.0 | 1 | C11 13 1/2'' |
| 13 | G 5/8'' | 10.0 | 22.0 | 2 | C11 13 5/8'' |
| 13 | G 3/4'' | 10.0 | 23.0 | - | C11 13 3/4'' |
| 16 | G 1/2'' | 12.5 | 23.0 | - | C11 16 1/2'' |
| 16 | G 5/8'' | 12.5 | 21.0 | 1 | C11 16 5/8'' |
| 16 | G 3/4'' | 12.5 | 23.0 | 2 | C11 16 3/4'' |
| 20 | G 3/4'' | 15.0 | 24.0 | 1 | C11 20 3/4'' |
| 20 | G 1'' | 15.0 | 25.0 | 2 | C11 20 1'' |
| 25 | G 1'' | 21.0 | 26.0 | 1 | C11 25 1'' |
| 25 | G 1 1/4'' | 21.0 | 26.0 | 2 | C11 25 1 1/4'' |
| 32 | G 1 1/4'' | 27.0 | 27.0 | 1 | C11 32 1 1/4'' |
| 32 | G 1 1/2'' | 27.0 | 55.0 | 2 | C11 32 1 1/2'' |
| 40 | G 1 1/2'' | 33.0 | 30.0 | 1 | C11 40 1 1/2'' |
| 40 | G 2'' | 33.0 | 57.0 | 2 | C11 40 2'' |
| 50 | G 1 1/2'' | 33.0 | 80.0 | 1 | C11 50 1 1/2'' |
| 50 | G 2'' | 44.5 | 32.0 | 2 | C11 50 2'' |
