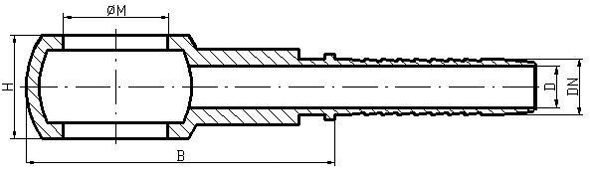

| Średnica węża DN |
Średnica wew. oczka M | H [mm] |
D [mm] |
B [mm] |
System oznaczeń |
Symbol |
| 6 | G 1/8'' | 14 | 4.0 | 35 | 2 | C01 06 G1/8'' 14 |
| 6 | G 1/4'' | 13,5 | 4.0 | 35 | 1 | C01 06 G1/4'' 13,5 |
| 8 | G 1/8'' | 14 | 5.5 | 38 | 2 | C01 08 G1/8'' 14 |
| 8 | G 1/4'' | 13,5 | 5.5 | 38 | 1 | C01 08 G1/4'' 13,5 |
| 10 | G 1/4'' | 14 | 7.0 | 42 | 2 | C01 10 G1/4'' 14 |
| 10 | G 3/8'' | 17 | 7.0 | 42 | 1 | C01 10 G3/8'' 17 |
| 13 | G 3/8'' | 19 | 10.0 | 45 | 2 | C01 13 G3/8'' 19 |
| 13 | G 1/2'' | 22 | 10.0 | 45 | 1 | C01 13 G1/2'' 22 |
| 16 | G 5/8'' | 23,5 | 12.6 | 55 | 1 | C01 16 G5/8'' 23,5 |
| 16 | G 1/2'' | 22 | 12.6 | 55 | 2 | C01 16 G1/2'' 22 |
| 20 | G 3/4'' | 29 | 15.0 | 57 | 1 | C01 20 G3/4'' 29 |
| 25 | G 3/4'' | 32 | 21.0 | 64 | 2 | C01 25 G3/4'' 32 |
| 25 | G 1'' | 38 | 21.0 | 64 | 1 | C01 25 G1'' 38 |
